20Ton 304 Stainless Steel Snow Flake Ice Maker Machine Commercial For Fish Shrimp Food Processing

Certification
China Shenzhen Icesnow Refrigeration Equipment Co., Ltd certification
China Shenzhen Icesnow Refrigeration Equipment Co., Ltd certification
I'm Online Chat Now

20Ton 304 Stainless Steel Snow Flake Ice Maker Machine Commercial For Fish Shrimp Food Processing

20Ton 304 Stainless Steel Snow Flake Ice Maker Machine Commercial For Fish Shrimp Food Processing
20Ton 304 Stainless Steel Snow Flake Ice Maker Machine Commercial For Fish Shrimp Food Processing 20Ton 304 Stainless Steel Snow Flake Ice Maker Machine Commercial For Fish Shrimp Food Processing

Large Image :  20Ton 304 Stainless Steel Snow Flake Ice Maker Machine Commercial For Fish Shrimp Food Processing

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: GM-200KA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: 25 working days

20Ton 304 Stainless Steel Snow Flake Ice Maker Machine Commercial For Fish Shrimp Food Processing

Description
Ice Shape: Flake Ice Voltage: 380v/50hz/3p
Condition: New Material: Stainless Steel
Temperature Of Flake Ice: -5℃~-8℃ Ice Thickness: 1.5mm-2.2mm
Water-feeding Pressure: 0.1Mpa-0.6Mpa
High Light:

20Ton Shrimp snow flake ice maker

,

304 snow flake ice maker

,

304 flake ice machine commercial

20Ton/Day 304 Stainless Steel Ice Flake Maker Machine/Flake Ice Machine For Fish/Shrimp/Food Processing



Main Features



● PLC controlling system, very easy to use.

● Machine power supply: 3P/380V/50HZ,3P/220V/60HZ,3P/380V/60HZ,

● We have a team of experienced professional engineers to install and have successfully installed dozens of large-scale projects abroad.

● Strictly manufactured flake ice evaporator and ice cutter to ensure the long lifespan

● Refrigerant gas: R22/R404A/R507

● all material are stainless steel



Decription:

1 .Icesnow flake ice machine designed based on the features and special requirements of supermarket freshing, lab and health care industry, applicated to the field which demands high grade of ice flake


2. Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.


3. Microcomputer Intelligent Control: the machine using world famous brand components. Meanwhile, it can protect the machine when there are a water shortage, ice full, high/ low-pressure alarm, and motor reversal.



4. Ice blade--Spiral ice blade, small resistance, low loss, no noise and making ice in uniform.







Specification:



Name Technical Data
Ice production 20ton/24h
Refrigeration capacity 150kw
Evaporating temp. -25℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Total Power 60.9KW
Compressor Power 120HP
Reducer Power 0.75KW
Water pump Power 0.37KW
Brine Pump 0.012KW
Standard Power 3P-380V-50Hz
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant R404A
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 3210kg
Dimension (ice machine) 4440mm×2174mm×2279mm





Product Advantage:

1. Scientific design and many years of engineering experience
Icesnow will offer you the best scheme of tailor-made ice-making system We have not only supplied lots of ice flake systems to customers from various places but also offered technological consultancy to them.


2. High efficiency and energy saving
We have optimized the design of ice flake units to ensure the ice flake units can function constantly without wasting energy. We have also adopted a special kind of alloy material and patent processing technology to ensure efficient heat conductivity.


3. Simple maintenance and convenient moving
All our equipment is designed on the basis of modules, so its spot maintenance is quite simple. Once some of its parts needs replacing, it is easy for you to remove the old parts and install the new ones. Moreover while designing our equipment, we always take into full account how to convenience future moves to other construction sites.









Product Image:

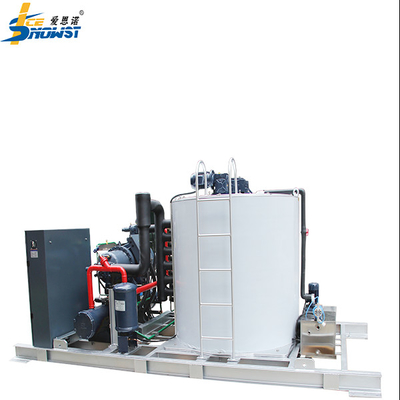

20Ton 304 Stainless Steel Snow Flake Ice Maker Machine Commercial For Fish Shrimp Food Processing 0

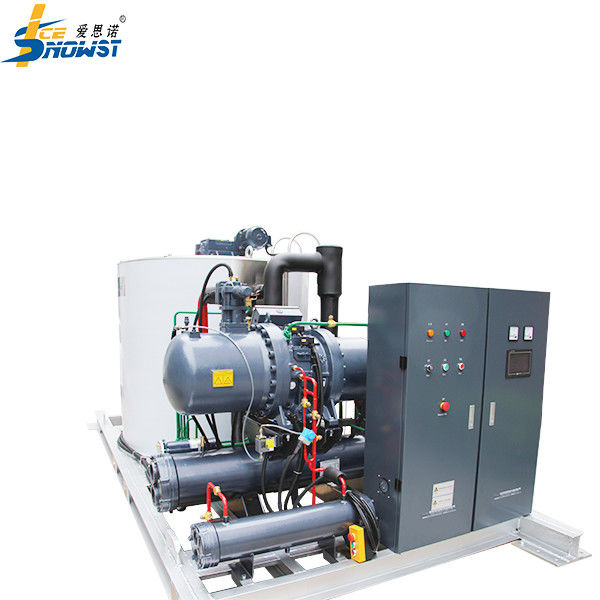

20Ton 304 Stainless Steel Snow Flake Ice Maker Machine Commercial For Fish Shrimp Food Processing 1

Main brands on Icesnow flake ice machine:

20Ton 304 Stainless Steel Snow Flake Ice Maker Machine Commercial For Fish Shrimp Food Processing 2



FAQ:

1. Warranty:

1) 24 months warranty after delivery.



2)Professional after-sales department to provide 24/7 technical support, all complaints should be replied within 24 hours.



3)Over 15 engineers available to service machinery overseas.



4)Free spare parts replacement within warranty period.





2. Why choose us ?

1) We have exported our ice machines to more than 150 countries ;



2)Excellent Brand of China Ice Machine Industry;



3)The Drafting Committee of National Ice Machine Industrial Standard;



4)Produce & Academic Research Strategy Cooperating Partner with Tsing Hua University.
