Home ProductsFreshwater Flake Ice Machine

ISO 5 ton Freshwater Flake Ice Machine With Cold Room

Certification
China Shenzhen Icesnow Refrigeration Equipment Co., Ltd certification
China Shenzhen Icesnow Refrigeration Equipment Co., Ltd certification
I'm Online Chat Now

ISO 5 ton Freshwater Flake Ice Machine With Cold Room

ISO 5 ton Freshwater Flake Ice Machine With Cold Room
ISO 5 ton Freshwater Flake Ice Machine With Cold Room ISO 5 ton Freshwater Flake Ice Machine With Cold Room

Large Image :  ISO 5 ton Freshwater Flake Ice Machine With Cold Room

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: GM-50KA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: 20 working days

ISO 5 ton Freshwater Flake Ice Machine With Cold Room

Description
Ice Shape: Flake Ice Voltage: 380v/50hz/3p
Condition: New Material: Carbon Steel
Temperature Of Flake Ice: -5℃~-8℃ Ice Thickness: 1.5mm-2.2mm
Water-feeding Pressure: 0.1Mpa-0.6Mpa Cooling Type: Water Cooling
High Light:

ISO Freshwater Flake Ice Machine

,

5T Freshwater Flake Ice Machine

,

ISO 5 ton flake ice machine

ISO Certificate 5T/Day Flake Ice Machine with Cold Room



5 tons 24 hrs flake ice machine is a middle capacity ice machine. To fully use the machine production, we provide cold storage with cold source for ice storage overnight. The auto control system of the machine ensure the operating at night, and it will stop when the ice storage is full of ice. This capacity is widely used on the islands, it is still able to be powered by diesel generator.



Main Features



● Daily Capacity: 5 ton 24 hrs

● Machine power supply: 3P/380V/50HZ,3P/220V/60HZ,3P/380V/60HZ,

● PLC intelligent control system, fully automated production, no manual operation required

● Adopt environmentally friendly refrigerant, environmental protection, high efficiency and energy saving

● The whole machine has passed CE Certificate, ISO Certificate and has high security





Decription:

1 .Icesnow flake ice machine designed based on the features and special requirements of supermarket freshing, lab and health care industry, applicated to the field which demands high grade of ice flake
2. Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.
3. Perfect in food cooling: Flake ice Is type of dry and crispy Ice, it hardly forms any shape edges. In food cooling process, this nature has made It the best material for cooling, it can reduce the possibility of damage to food to the lowest rate.

4. Fast ice making speed: Can produce ice within 3 minutes after starting It, do not need extra person to take off and get the ice.





Specification:



Name Technical Data
Ice production 5ton/24h
Refrigeration capacity 28015Kcal/h
Evaporating temp. -20℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Total Power 18.5kw
Compressor Power 25HP
Reducer Power 0.37KW
Water pump Power 0.18KW
Brine Pump 0.012KW
Standard Power 3P-380V-50Hz
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant R404A
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 1240kg
Dimension of flake ice machine 2040mm×1650mm×1630mm





Product Advantage:

1. Refrigerating unit -- Main parts of refrigerating units are all from America, Germany, Japan and other countries that have leading refrigeration technology.


2. PLC programmable control system -- The machine can start and stop automatically to make the evaporator mechanical operation system and water supplying circulation system coordination matched and work safely & efficiently under the control of PLC controller. The whole system is protected by the alarm of water shortage, ice full, high and low pressure abnormal, power phase inverse and compressor overload, etc.with the computer intelligence control.

When there is a failure, the PLC will stop the unit automatically and the corresponding alarming indicator lights up. And when the fault is settled, PLC controller will soon start the machine after receiving the information. The whole system is controlled automatically well without hand operation.


3. Flake ice Evaporator--Ice machine evaporator adopts the fixed static vertical design, namely the evaporator is static and the ice blade rotate in the inner wall to scrape ice. The design reduces the wear, has high sealing and avoids the leakage of the refrigerant effectively. It is made of SUS 304 material and adopts automatic fluorine welding technology to improve its intensity and accuracy.




4.Once formed, Ice flakes are dry, clean, beautiful in shape. Sanitary and convenient.



5. Scientific design and many years of engineering experience
Icesnow will offer you the best scheme of tailor-made ice-making system We have not only supplied lots of ice flake systems to customers from various places but also offered technological consultancy to them.





Product image:

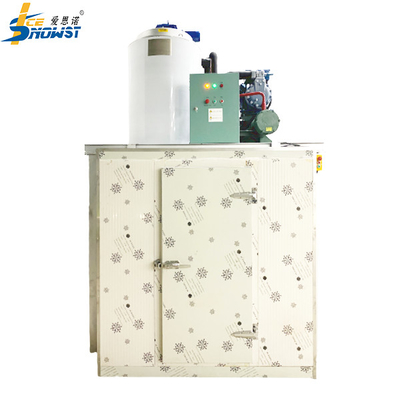

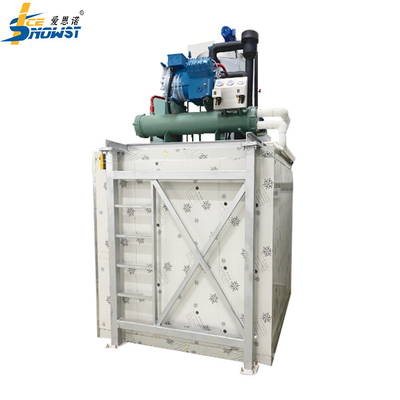

ISO 5 ton Freshwater Flake Ice Machine With Cold Room 0ISO 5 ton Freshwater Flake Ice Machine With Cold Room 1



















FAQ:

1. What's the delivery time of your machine?
our factory have stock for 0.3ton~5ton, 5~30 ton, 25 days. (based on the electricity 380V/50Hz/3p, some special design lead time will be longer )

2. What’s the payment method you accept ?
T/T, In Cash, 30% deposit, balance should be paid before shipping.

3. How about the warranty for the products ?
24 months since the delivery date.



4: How do you make our business long-term and good relationship?
A. We keep good quality and competitive price to ensure our customers benefit ;

B. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
