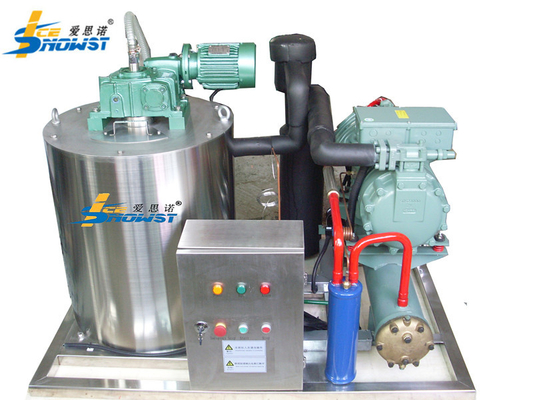

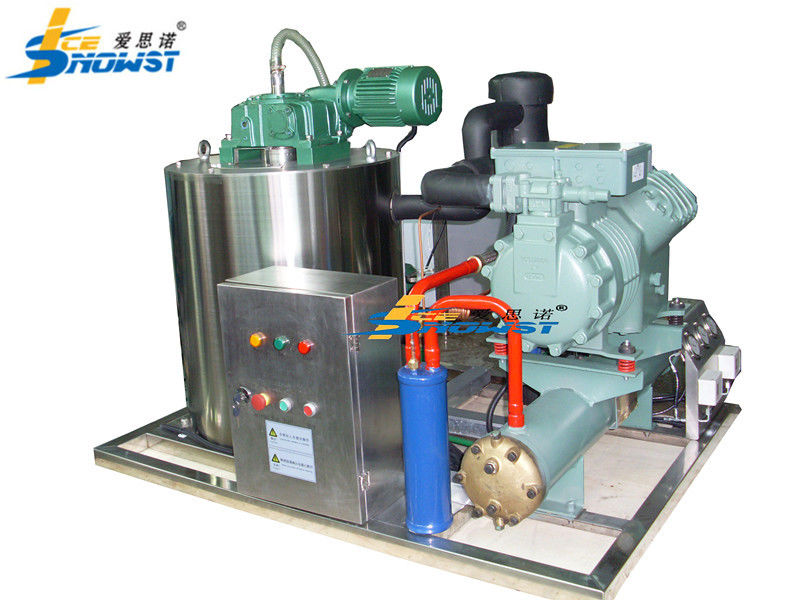

Commercial Salt Water Flake Ice Generator Maker 2Ton For Tuna Fishing Boats

Certification
China Guangdong  Icesnow Refrigeration Equipment Co., Ltd certification
China Guangdong  Icesnow Refrigeration Equipment Co., Ltd certification
I'm Online Chat Now

Commercial Salt Water Flake Ice Generator Maker 2Ton For Tuna Fishing Boats

Commercial Salt Water Flake Ice Generator Maker 2Ton For Tuna Fishing Boats
Commercial Salt Water Flake Ice Generator Maker 2Ton For Tuna Fishing Boats Commercial Salt Water Flake Ice Generator Maker 2Ton For Tuna Fishing Boats

Large Image :  Commercial Salt Water Flake Ice Generator Maker 2Ton For Tuna Fishing Boats

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: GMH-20KA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: 20 working days

Commercial Salt Water Flake Ice Generator Maker 2Ton For Tuna Fishing Boats

Description
Material: SUS316 Stainless Steel Ice Shape: Flake Ice
Power Supply: 380V/50HZ/3P
High Light:

Commercial flake ice generator

,

2Ton flake ice generator

,

2Ton commercial flake ice maker

 2Ton/day Salt Water Seawater Flake Ice Machine for tuna fishing boats



Main Features:

1.The sea water flake ice machine is divided into two forms for marine and land use.



2.The user directly extracts seawater ice-making and condenser circulating water from the sea.



3 .The icing surface is made of stainless steel, all of which are combined with a rake-type ice blade and an ice-scraping blade; ensuring a high de-icing rate.



4.The design and manufacture of marine flake ice machines have taken into account factors such as seawater corrosion, ship sway, long battery life and harsh climate environment.



5.whether the spare parts are easy to find in locally

yes, we use famous and steady refrigeration components and it is also common model in locally and way to find and replace.



Product Description:

1.The ice produced is in the form of flakes, the thickness can reach 2.5mm, it is dry without powder, and the ice temperature can reach -10℃;



2.The material used for the flake ice evaporator is stainless steel and anti-corrosion alloy aluminum, and the service life can be as long as 18 years;



3.The special ice scraping method has passed the patent application, so that the fishing boat can hang ice normally at 35 degrees in harsh environment;



4.Compact design, simple refrigeration system, optional overall or distributed arrangement;





Specification:



Product name sea water ice flake machine
Ice making capacity 2ton
Refrigerant gas R22/R404A
ice thickness 1.5~2.2
Cooling mode water-cooling
Water supply mode seawater
material 316 stainless steel





Applications:

Commercial Salt Water Flake Ice Generator Maker 2Ton For Tuna Fishing Boats 0



Commercial Salt Water Flake Ice Generator Maker 2Ton For Tuna Fishing Boats 1



Commercial Salt Water Flake Ice Generator Maker 2Ton For Tuna Fishing Boats 2



Commercial Salt Water Flake Ice Generator Maker 2Ton For Tuna Fishing Boats 3







Product Advantage:



1.No need for personnel operation, one-key control, automatic monitoring, no need for frequent maintenance, which greatly saves manpower and material resources.



2.Strong and Durable parts.All compressor and refrigerant parts are world first class.



3.Low energy consumption.Energy consumption saving reaches more than 30% compare with traditional equipment.



4.High quality material.The evaporator drum are made of stainless steel 316 material,which is anti-rust and anti-corrosion.



5.316 Stainless steel:

The seawater flake ice machine is made of anti-corrosion 316 stainless steel, could be installed on board directly, the inclination angle could reach 35℃ degrees above,while keeping water circulating without over-flowing, keeping machine running normally. Using sea water to make ice directly, then the ice drops into cabin. This will reduce the loading of the boat, save energy.







Commercial Salt Water Flake Ice Generator Maker 2Ton For Tuna Fishing Boats 4



Commercial Salt Water Flake Ice Generator Maker 2Ton For Tuna Fishing Boats 5











FAQ:

1. What's the voltage of the ice machine?

Answer: Standard voltage: 380V-50Hz-3phase, other speccial voltage can be customized also, like: 220V-60Hz-3pase, 415V-50Hz-3phase, 480V-60Hz-3phase.



2. How about the cooling way?

Answer: Usually small ice machines are air cooling, medium and large ice machines are water cooling.



3. What kind of compressor do you use?

Answer: We use international famous brand compressors.



4.How about lead time?

Answer: 20-25 working day.
