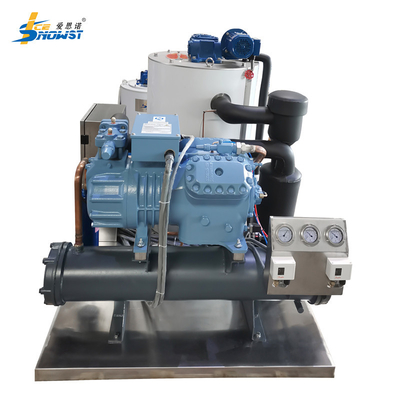

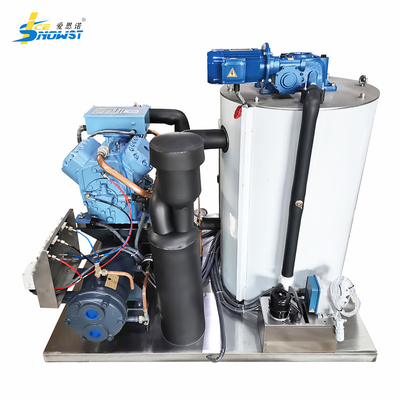

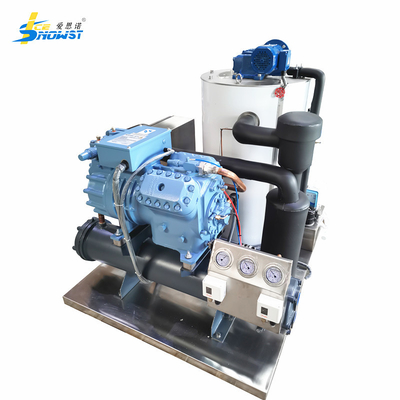

Industrial Seawater Flake Ice Machine 3 Ton 380V

Industrial Seawater Flake Ice Machine 3 Ton 380V
Industrial Seawater Flake Ice Machine 3 Ton 380V Industrial Seawater Flake Ice Machine 3 Ton 380V Industrial Seawater Flake Ice Machine 3 Ton 380V

Large Image :  Industrial Seawater Flake Ice Machine 3 Ton 380V

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: GMH-30KA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: 20 working days

Industrial Seawater Flake Ice Machine 3 Ton 380V

Description
Material: SUS316 Stainless Steel Ice Shape: Flake Ice
Power Supply: 380V/50HZ/3P
High Light:

3 Ton Seawater Flake Ice Machine

,

380V Seawater Flake Ice Machine

,

380V industrial flake ice machine

 Sea Salt Water 3ton/day Ice Flake Machine Maker Fishing Boats and Vessel



Main Features:

1.The sea water flake ice machine is divided into two forms for marine and land use.



2.The user directly extracts seawater ice-making and condenser circulating water from the sea.



3 .The icing surface is made of stainless steel, all of which are combined with a rake-type ice blade and an ice-scraping blade; ensuring a high de-icing rate.



4.Flake Ice Thickness : 1.5-2.0 MM



5.whether the spare parts are easy to find in locally

yes, we use famous and steady refrigeration components and it is also common model in locally and way to find and replace.



Product Description:

1.The ice produced is in the form of flakes, the thickness can reach 2.5mm, it is dry without powder, and the ice temperature can reach -10℃;



2.The material used for the flake ice evaporator is stainless steel and anti-corrosion alloy aluminum, and the service life can be as long as 18 years;



3.The special ice scraping method has passed the patent application, so that the fishing boat can hang ice normally at 35 degrees in harsh environment;



4.Compact design, simple refrigeration system, optional overall or distributed arrangement;



5.Daily capacity: 3 tons flake ice in 24 hrs







Flake ice machine Application:

1) Fishing--Sea water flake ice machine can make ice directly from the sea water, ice can be used in fast cooling of fish and other sea products. Fishing industry is the largest application field of flake ice machine.


2) Sea food process--Flake ice can lower the temperature of cleaning water and sea products, therefore it resists the growth of bacteria and keeps the sea food fresh.





Industrial Seawater Flake Ice Machine 3 Ton 380V 0



Industrial Seawater Flake Ice Machine 3 Ton 380V 1



Industrial Seawater Flake Ice Machine 3 Ton 380V 2







Product Advantage:



1.No need for personnel operation, one-key control, automatic monitoring, no need for frequent maintenance, which greatly saves manpower and material resources.



2.Strong and Durable parts.All compressor and refrigerant parts are world first class.



3.Low energy consumption.Energy consumption saving reaches more than 30% compare with traditional equipment.



4.High quality material.The evaporator drum are made of stainless steel 316 material,which is anti-rust and anti-corrosion.



5.316 Stainless steel:

The seawater flake ice machine is made of anti-corrosion 316 stainless steel, could be installed on board directly, the inclination angle could reach 35℃ degrees above,while keeping water circulating without over-flowing, keeping machine running normally. Using sea water to make ice directly, then the ice drops into cabin. This will reduce the loading of the boat, save energy.



6.Icesnow have strong R&D engineer team and supply high quality and steady products.





Industrial Seawater Flake Ice Machine 3 Ton 380V 3



Industrial Seawater Flake Ice Machine 3 Ton 380V 4











FAQ:

1. What's the voltage of the ice machine?

Answer: Standard voltage: 380V-50Hz-3phase, other speccial voltage can be customized also, like: 220V-60Hz-3pase, 415V-50Hz-3phase, 480V-60Hz-3phase.



2. How about the cooling way?

Answer: Usually small ice machines are air cooling, medium and large ice machines are water cooling.



3. How long is your warranty?

Answer: 2 years, and Lifelong after-sales service and technical support.



4.How about lead time?

Answer: 20-25 working day.
