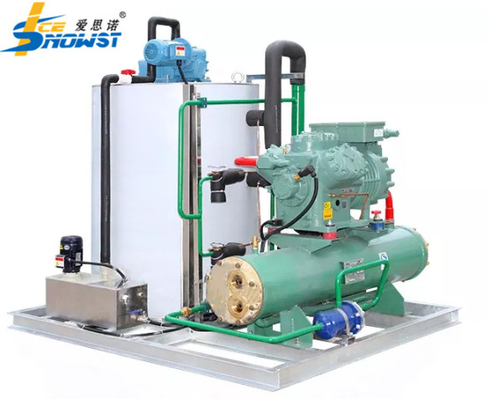

Advanced Technology 10Ton/day Seawater Flake Ice Machine Flake Ice Making Machine on Land

Main Features:

1. The sea water flake ice machine is divided into two forms for marine and land use.

2. The user directly extracts seawater ice-making and condenser circulating water from the sea.

3 .Referance power supply is dynamice electricity with 380v /50HZ, however, If necessary, It can be changed into 60hz/220v/200v/440v/400v/415V/480V according to different requirement of clients.

 4. Refrigerant gas: R22/R404A

5. Spiral hob, low resistance, low loss, no noise, uniform ice scraping.

6. compressor: Bizter Compressor

Product Description:

1. The ice produced is in the form of flakes, the thickness can reach 2.5mm, it is dry without powder, and the ice temperature can reach -10℃;

2. The material used for the flake ice evaporator is stainless steel and anti-corrosion alloy aluminum, and the service life can be as long as 18 years;

3. Cooling type: water cooled

4. The evaporator of our flake ice machine adopts a fixed static vertical design, that is, internal scraping ice making, the evaporator does not move, and the ice blade rotates on the inner wall to scrape ice.

5. Daily capacity: 10 tons flake ice in 24 hrs

Specification:

Product Advantage:

1.No need for personnel operation, one-key control, automatic monitoring, no need for frequent maintenance, which greatly saves manpower and material resources.

2.Strong and Durable parts.All compressor and refrigerant parts are world first class.

3.Low energy consumption.Energy consumption saving reaches more than 30% compare with traditional equipment.

4.High quality material.The evaporator drum are made of stainless steel 316 material,which is anti-rust and anti-corrosion.

5.316 Stainless steel:

The seawater flake ice machine is made of anti-corrosion 316 stainless steel, could be installed on board directly, the inclination angle could reach 35℃ degrees above,while keeping water circulating without over-flowing, keeping machine running normally. Using sea water to make ice directly, then the ice drops into cabin. This will reduce the loading of the boat, save energy.

6.Microcomputer intelligent control: the ice making system adopts microcomputer fully.

FAQ:

1. What's the voltage of the ice machine?

Answer: Standard voltage: 380V-50Hz-3phase, other speccial voltage can be customized also, like: 220V-60Hz-3pase, 415V-50Hz-3phase, 480V-60Hz-3phase.

2. How about the cooling way?

Answer: Usually small ice machines are air cooling, medium and large ice machines are water cooling.

3. Are you add refrigerant in the ice machine?
Yes, the machine is full of refrigerant, once with water and electric it can work. yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.

4.Do you test the ice machine in your factory?
Yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.
