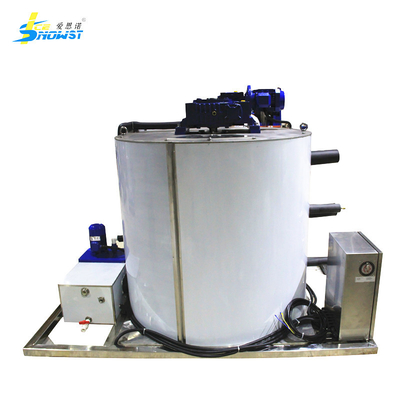

10T/day Seawater Flake Ice Evaporator Drum Machine on Boat for Fishing

10T/day Seawater Flake Ice Evaporator Drum Machine on Boat  for Fishing
10T/day Seawater Flake Ice Evaporator Drum Machine on Boat  for Fishing

Large Image :  10T/day Seawater Flake Ice Evaporator Drum Machine on Boat for Fishing

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: GME-100KA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: 20 working days

10T/day Seawater Flake Ice Evaporator Drum Machine on Boat for Fishing

Description
Ice Shape: Flake Ice Voltage: 380v/50hz/3p
Condition: New Material: 316 Stainless Steel
Temperature Of Flake Ice: -5℃~-8℃ Ice Thickness: 1.5mm-2.2mm
Water-feeding Pressure: 0.1Mpa-0.6Mpa

10T/day Seawater Flake Ice Evaporator Drum Machine on Boat for Fishing





Main Features:



1. Ice making and dropping in high speed.



2. All material is stainless steel,inner drum is 316 stainless steel, other material are 304 stainless steel.



3. The equipment can be used with stainless steel ice storage bins or polyurethane ice storage bins, and a wide range of accessories are available.



4. Single-formed non-welded stainless steel ice scrapers can be used for a long time to rotate and scrape ice.



5.Daily Capacity:10ton/day





Decription:



1 . The evaporator of flake ice machine is where the ice has been generated. It is a vertical placed drum shape container, equipped with the rotating blade which spin and scratch the ice of the inner wall of evaporator. When operating, the principle shaft and blade spins anti-clock wisely pushed by the reducer. Water is sprayed down from the sprinkler, then ice forms on the inner wall. Ice blade then scratches the ice off and ice drops down to the ice storage bin.




2. Spindle and other accessories: made of SUS304 material through precision machining, and conform to food hygiene standards.


3. Adopting the internally-scraping ice making mode, the ice blade scraps ice within inner wall while the evaporator itself remains not moving. It reduces the loss of energy as much as possible and normally guarantees the supply of refrigerant as well as no leaking.


4All water supply line are made of stainless steel, high sanitary condition;



5.Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.






Specification:



Name Technical Data
Ice production 10Ton/day
Refrigeration capacity 80KW
Evaporating temp. -30℃
Condensing Temp. 30℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Reducer motor Power 0.75KW
Water pump Power 0.37KW
Brine water Pump 0.012KW
Standard Power 380V/50Hz/3P,3P/220V/60Hz,380V/60Hz/3P
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant gas R404A/R507/R22
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 890kg
Dimension of flake ice evaporator 1100*950*1196mm







Product Advantage:



1. Be designed and produced with standard low-temperature pressure vessel manufacturing process, including surface treatment, heat treatment, gas-tight test, tensile & compression strength test, etc.



2. All the ICESNOW flake ice evaporator is strictly tested by the X-ray to guarantee its safety for leak problem with very strict quality control. With precision welding and surface treatment, make highly efficient heat conduction coefficient, high strength.Icesnow flake ice evaporator are durable that have a long lifespan.



3. Perfect stability: In normal condition remains good output and the special types run well in execrable conditions.



4. Excellent and professional after-sales service: Our company is willing to provide clients with various training, testing, installation of products and technical consulting services. We'd like to regard requirements of customers as our responsibility, and offer the best and considerable service at any time.



5.Pass the international CE, SGS, ISO9001 and other certification standards, the quality is reliable.



6.316 Stainless steel:

The seawater flake ice machine is made of anti-corrosion 316 stainless steel, could be installed on board directly, the inclination angle could reach 35℃ degrees above,while keeping water circulating without over-flowing, keeping machine running normally. Using sea water to make ice directly, then the ice drops into cabin. This will reduce the loading of the boat, save energy.





10T/day Seawater Flake Ice Evaporator Drum Machine on Boat  for Fishing 0















FAQ:



Q1: What is the warranty for ice making machine?

A: 18 months after B/L date. Any failure occurred within this period due to our responsibility, we'll supply you the spare parts for free and permanent technical support &consultation all life long for ice making machines.



Q2 : Can any of the products be custom imprinted?
A: If you need to print your company logo on the products and that is available to be customized. Or if you have your own designed idea and that will be our honor to customize for you.


Q3: Is sample order available?
Yes, samples is available, but the sample cost and postage charge is on buyer's account.





Q4 : Can we put our own logo on the machine?
Sure, we can do OEM for you. ODM also is welcomed
