Place of Origin:
China
Brand Name:
ICESNOW
Certification:
CE CERTIFICATE
Model Number:
ISN-ZK50
Advanced Technology 5Ton/day Containerized Block Ice Machine Ice Block Making Plant
Main Features:
1. The traditional craft of brine heat ice, ice machine running stable, low failure rate;
2. According to customer requirements, design suitable block ice machine for the customer request;
3. The ice mold can be made of galvanized sheet or stainless steel;
4. The machine process of ice is the full automatic control; don't need a professional people with certificates;
5. Ice size can be customization.
Product Description:
1.Block ice size: 5kg, 10kg, 15kg, 20kg, 25kg, 30kg, 50kg, 100kg, etc. And we can also design the ice block size according to customers' needs.
2. ice block machines are new-type design with high efficiency and stable capacity, performance well in tropical area such as Africa, Middle East and Oceania.
3. The ice block machine adopts separate design for the ice block machinery unit and water tank part, which is easy to install and maintenance. Meanwhile you just need to connect water pipes and power lines to the machine.
4. Supply power: 380V-3P-50Hz or 220V-3P-60Hz
Specification:
| Model | ISN-ZK150 | |
| Cooling Capacity (kw) | 135KW | |
| Daily capacity | 15Ton/day | |
| Rated Power (kw) | 60kw | |
| Compressor brand | Screw Hanbell | |
| Compressor power | 47KW | |
| Refrigerant gas | R404A/R22/R507 | |
| Power supply | 3P/380V/50Hz | |
| Each Ice Block weight(kg) | 50kg | |
| Dimension of block ice evaporator | 5650*2110*2280mm | |
| Dimension of condensing unit | 3120*2300*2100mm | |
Advantages of our block ice machine:
1). The ice moulds and salt water tank are made of stainless steel 304 material, which is anti-rust and anti-corrosive and life span is longer.
2). Modular structure and integrated design, save space, flexible move, easy to install and harvest ice on the spot.
3). Low energy consumption, low maintenance, safe and reliable, environmentally friendly and high capacity.
4). Easy operation and convenient transportation, low cost.
5).All dimensions of ice block machines are designed according to the international standard size of the container to ensure they are easy to ship and convenient for transportation.
| Ice Size/pc | Ice Dimension (mm) (Thickness*Width*Height) |
Freezing Time (Hours) |
Ice Making Frequency (Times) |
| 5KG | 95*130*500 | 3 | 7 |
| 10KG | 95*260*500 | 3 | 7 |
| 15KG | 123*300*500 | 8 | 3 |
| 123*215*710 | 8 | 3 | |
| 20KG | 123*285*710 | 8 | 3 |
| 25KG | 123*350*710 | 8 | 3 |
| 155*280*710 | 8 | 3 | |
| 30KG | 155*315*710 | 8 | 3 |
| 50KG | 410*160*925 | 12 | 2 |

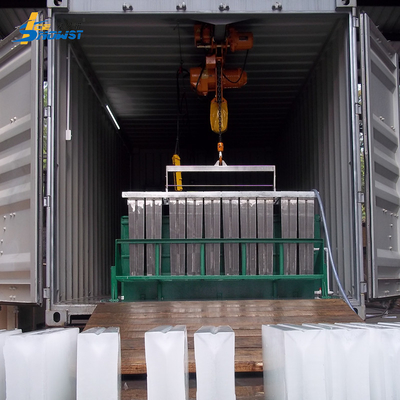

Product image:
FAQ:
Q1: Are you factory or trade company?
A: We are factory,have our own machines,workers,R&D department.Sales and after-sale department.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance. You're welcome to see the test of the machines for days.
Q3. How about your delivery time?
A: Generally, it will take 25 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4.What can you do for us?
A:All material/color/size are available, also we can customize products as your requirements. Any questions, pls don't hesitate to contact us!
