Easy Operation 10Ton/day Containerized Brine Block Ice Machine Mobil Ice Plant
Main Features:
1. The traditional craft of brine heat ice, ice machine running stable, low failure rate;
2. According to customer requirements, design suitable block ice machine for the customer request;
3. The ice mold: Stainless steel 304 and galvanized steel are available.The later is chosen for cost-saving.
4. The machine process of ice is the full automatic control; don't need a professional people with certificates;
5. Brine tank:The stainless steel part between the brine water and the brine tank highly resists rust and it works well in a cold condition.Concrete brine tank is also suggestibale for some projects.
Product Description:
1.Block ice size: 5kg, 10kg, 15kg, 20kg, 25kg, 30kg, 50kg, 100kg, etc. And we can also design the ice block size according to customers' needs.
2. Evaporator:Paktong tubes are used as evaporator coil to improve the heat transfer effect,and its stainlessness,anti-corrosion can guarantee the long service time.
3. The ice block machine adopts separate design for the ice block machinery unit and water tank part, which is easy to install and maintenance. Meanwhile you just need to connect water pipes and power lines to the machine.
4. Supply power: 380V-3P-50Hz or 220V-3P-60Hz
Specification:
| Model | ISN-ZK100 | |
| Cooling Capacity (kw) | 135KW | |
| Daily capacity | 15Ton/day | |
| Rated Power (kw) | 60kw | |
| Compressor brand | Screw Hanbell | |
| Compressor power | 47KW | |
| Refrigerant gas | R404A/R22/R507 | |
| Power supply | 3P/380V/50Hz | |
| Each Ice Block weight(kg) | 50kg | |
| Dimension of block ice evaporator | 5650*2110*2280mm | |
| Dimension of condensing unit | 3120*2300*2100mm | |
Advantages of our block ice machine:
1). The ice moulds and salt water tank are made of stainless steel 304 material, which is anti-rust and anti-corrosive and life span is longer.
2). Modular structure and integrated design, save space, flexible move, easy to install and harvest ice on the spot.
3). Low energy consumption, low maintenance, safe and reliable, environmentally friendly and high capacity.
4). Easy operation and convenient transportation, low cost.
5).Easy to install, convenient to move, there is no need to build houses to place the machine and can be transported in trucks or ships.
| Ice Size/pc | Ice Dimension (mm) (Thickness*Width*Height) |
Freezing Time (Hours) |
Ice Making Frequency (Times) |
| 5KG | 95*130*500 | 3 | 7 |
| 10KG | 95*260*500 | 3 | 7 |
| 15KG | 123*300*500 | 8 | 3 |
| 123*215*710 | 8 | 3 | |
| 20KG | 123*285*710 | 8 | 3 |
| 25KG | 123*350*710 | 8 | 3 |
| 155*280*710 | 8 | 3 | |
| 30KG | 155*315*710 | 8 | 3 |
| 50KG | 410*160*925 | 12 | 2 |

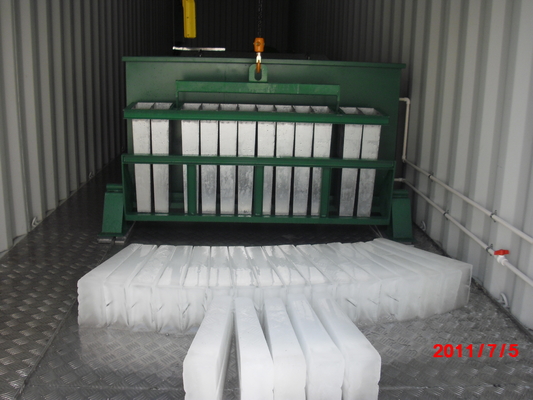

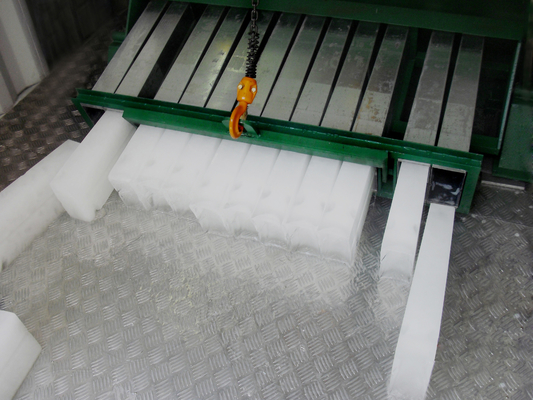

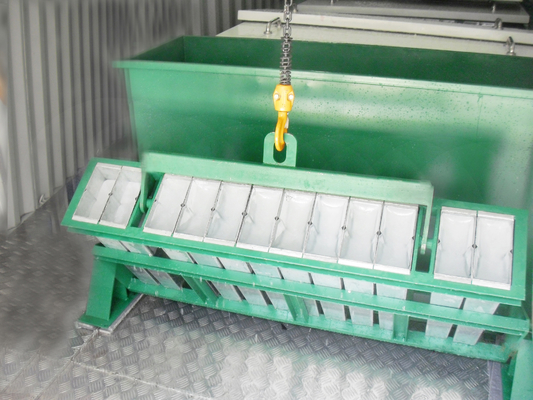

Product image:
FAQ:
Q1: Are you factory or trade company?
A: We are factory,have our own machines,workers,R&D department.Sales and after-sale department.
Q2. What is your aim?
A: And we would be happy that our customers using our brand Icesnow across our world. We aim to give cutomer best products with reasonable price.
Q3. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance. You're welcome to see the test of the machines for days.
Q4.What can you do for us?
A:All material/color/size are available, also we can customize products as your requirements. Any questions, pls don't hesitate to contact us!
|
|
