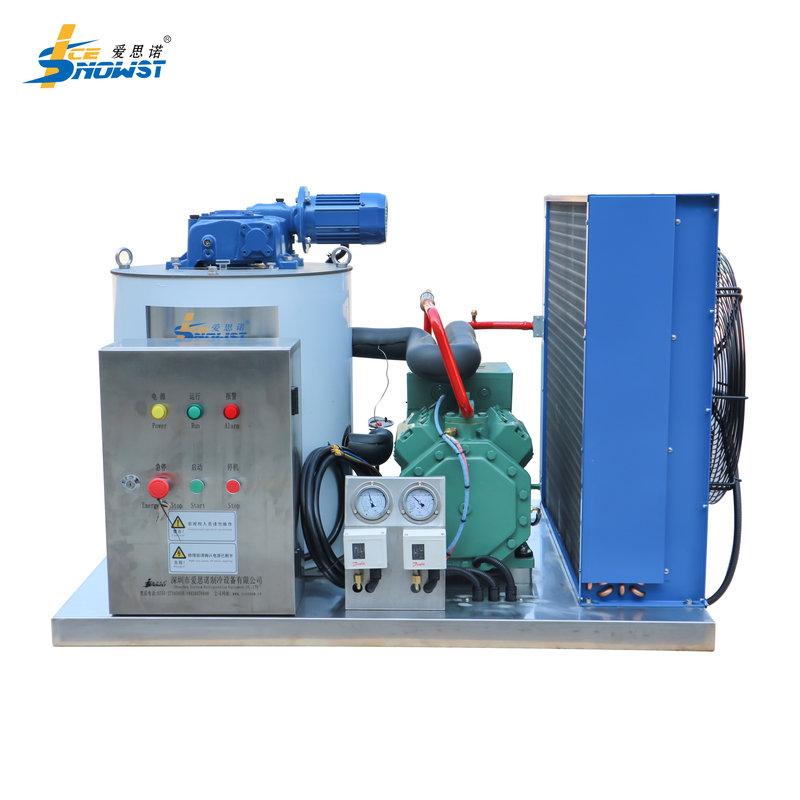

1 Ton SS316 Saltwater Flake Ice Machine Flake Ice Generator With Air Cooling

Certification
China Shenzhen Icesnow Refrigeration Equipment Co., Ltd certification
China Shenzhen Icesnow Refrigeration Equipment Co., Ltd certification
I'm Online Chat Now

1 Ton SS316 Saltwater Flake Ice Machine Flake Ice Generator With Air Cooling

1 Ton SS316 Saltwater Flake Ice Machine Flake Ice Generator With Air Cooling
1 Ton SS316 Saltwater Flake Ice Machine Flake Ice Generator With Air Cooling

Large Image :  1 Ton SS316 Saltwater Flake Ice Machine Flake Ice Generator With Air Cooling

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: GMH-10KA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: 20 working days

1 Ton SS316 Saltwater Flake Ice Machine Flake Ice Generator With Air Cooling

Description
Material: SUS316 Stainless Steel Ice Shape: Flake Ice
Power Supply: 380V/50HZ/3P Cooling Mode: Air Cooling
High Light:

SS316 saltwater flake ice machine

,

1 Ton saltwater flake ice machine

,

1 Ton flake ice generator

 1Ton/day SS316 Seawater Flake Ice Machine with Air Cooling on Fishing Vessel Boat for Trawler/Fishing



Main Features:

1. daily capacity:1ton/day





2.flake ice thickness:from 1mm to 2.2mm with excellent cooling performance



3 .what is the power consumption for this machine?

around 80 kw.h per ton of ice



4.whether it can use sea water to make flake ice

yes, it can supply fresh water and sea water flake ice machine. machine can install in the land or on board



5.whether the spare parts are easy to find in locally

yes, we use famous and steady refrigeration components and it is also common model in locally and way to find and replace.



Product Description:





1.The sea water flake ice machine is divided into two forms for marine and land use.

2.The user directly extracts seawater ice-making and condenser circulating water from the sea.

3.The icing surface is made of stainless steel, all of which are combined with a rake-type ice blade and an ice-scraping blade; ensuring a high de-icing rate.

4.The design and manufacture of marine flake ice machines have taken into account factors such as seawater corrosion, ship sway, long battery life and harsh climate environment.





specification:



Product name sea water ice flake machine
Ice making capacity 1ton
Refrigerant gas R22/R404A
ice thickness 1.5~2.2
Cooling mode air-cooling
Water supply mode seawater
material 316 stainless steel





Applications:

1 Ton SS316 Saltwater Flake Ice Machine Flake Ice Generator With Air Cooling 0



1 Ton SS316 Saltwater Flake Ice Machine Flake Ice Generator With Air Cooling 1









Product Advantage:



1.Worldwide famous main ice accessories:

Compressor: main refrigeration system power components ( American Copeland ZB series--High efficiency ,

low noise, built-in discharging valve and temperature Protector);



2.PLC program Logic Controller.

Provides multiple functions such as automatically turn on and shut down. Ice falling and Ice outgoing automatically,





3.American Expansion valve: (1)Reduce the high pressure and throttle the cold liquid refrigerant from the side with

high pressure, Making it a low temperature low pressure gas-liquid mixing refrigerants; (2) Control the refrigerant flow into the evaporator to adjust cooling capacity of the system and adapt to the change of external load.





4.High quality material.The evaporator drum are made of stainless steel 316 material,which is anti-rust and anti-corrosion.







1 Ton SS316 Saltwater Flake Ice Machine Flake Ice Generator With Air Cooling 2



1 Ton SS316 Saltwater Flake Ice Machine Flake Ice Generator With Air Cooling 3











FAQ:

1. What's the voltage of the ice machine?

Answer: Standard voltage: 380V-50Hz-3phase, other speccial voltage can be customized also, like: 220V-60Hz-3pase, 415V-50Hz-3phase, 480V-60Hz-3phase.



2. How about the cooling way?

Answer: Usually small ice machines are air cooling, medium and large ice machines are water cooling.



3. What kind of compressor do you use?

Answer: We use international famous brand compressors.



4. How about the payment terms?

Answer: 40%TT in advance and balance before shipment.
