High Efficiency Automatic Commercial 3T Flake Ice Machine Ice Maker for Slaughtering Processing

Certification
China Shenzhen Icesnow Refrigeration Equipment Co., Ltd certification
China Shenzhen Icesnow Refrigeration Equipment Co., Ltd certification
I'm Online Chat Now

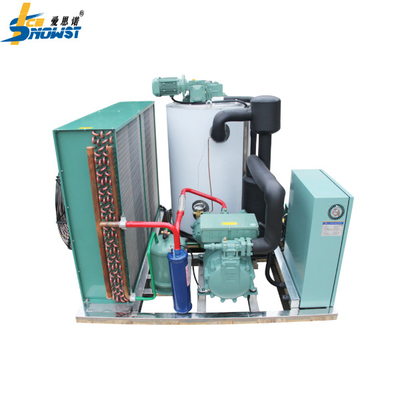

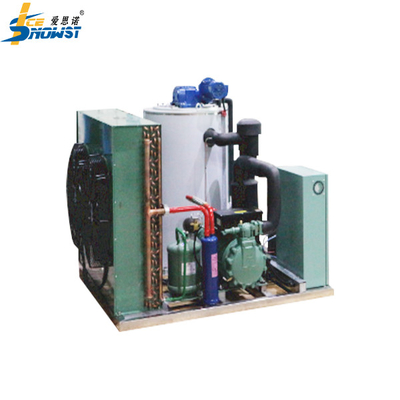

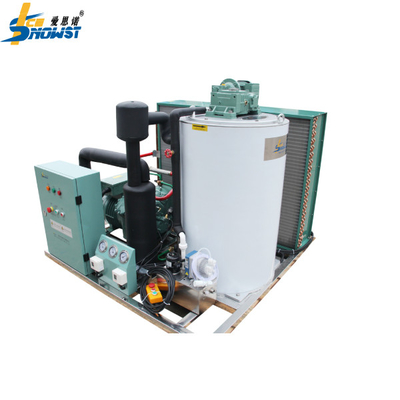

High Efficiency Automatic Commercial 3T Flake Ice Machine Ice Maker for Slaughtering Processing

High Efficiency Automatic Commercial  3T Flake Ice Machine Ice Maker for Slaughtering Processing
High Efficiency Automatic Commercial  3T Flake Ice Machine Ice Maker for Slaughtering Processing High Efficiency Automatic Commercial  3T Flake Ice Machine Ice Maker for Slaughtering Processing High Efficiency Automatic Commercial  3T Flake Ice Machine Ice Maker for Slaughtering Processing

Large Image :  High Efficiency Automatic Commercial 3T Flake Ice Machine Ice Maker for Slaughtering Processing

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: GM-30KA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: have stock

High Efficiency Automatic Commercial 3T Flake Ice Machine Ice Maker for Slaughtering Processing

Description
Ice Shape: Flake Ice Voltage: 380v/50hz/3p
Condition: New Material: Carbon Steel
Temperature Of Flake Ice: -5℃~-8℃ Ice Thickness: 1.5mm-2.2mm
Water-feeding Pressure: 0.1Mpa-0.6Mpa

High Efficiency Automatic Commercial 3T Flake Ice Machine Ice Maker  for Slaughtering Processing



Main Features:

1.The ice Skates is a screw scraper, features low resistance, low consumption, no noise.

2. Machine power supply: 3P/380V/50HZ,3P/380V/60HZ,3P/440V/60HZ

3. Sub-cooled ice, excellent fast cooling Super cold, dry, crisp, 100% subcooled ice with greater surface area and exceptional cooling power.



Decription:

1 .Icesnow flake ice machine designed based on the features and special requirements of supermarket freshing, lab and health care industry, applicated to the field which demands high grade of ice flake
2.Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.
3. Be designed and produced with standard low-temperature pressure vessel manufacturing process, including surface treatment, heat treatment, gas-tight test, tensile & compression strength test, etc.





Specification:



Name Technical Data
Ice production 3Ton/24h
Refrigeration capacity 16810Kcal/h
Evaporating temp. -20℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Total Power 11.4kw
Compressor Power 15HP
Reducer motor Power 0.18KW
Water pump Power 0.04KW
Brine water Pump 0.012KW
Standard Power 3P-380V-50Hz
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant R404A
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 585kg
Dimension of flake ice machine 1648mm×1450mm×1400mm









Product Advantage:

1. Icesnow ICE SYSTEMS owns its unique technology and get much better performance.



2. Superb Stability and reliability, long use life.



3. Pass the international CE, SGS, ISO9001 and other certification standards, the quality is reliable.



4. Energy-efficient and cost saving



5. 18 months warranty. Life time technical support.



6. Low maintenance and operation cost Super performance offers trouble-free operation, with much less maintenance probability than other brands of ice flaker.







FAQ

1. who are we?
We are based in Shenzhne, China, start from 2003,sell to Southeast Asia(30.00%),Africa(21.00%),North America(17.00%),Mid East(8.00%),South America(7.00%),South Asia(5.00%),Domestic Market(5.00%),Eastern Europe(00.00%),Oceania(00.00%),Eastern Asia(00.00%),Western Europe(00.00%),Central America(00.00%),Northern Europe(00.00%),Southern Europe(00.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. what can you buy from us?
Flake Ice Machines,flake ice evaporator,Tube Ice Machines,Block Ice Machines,,Cube Ice Machines,
