High Quality Material SS304 Stainless Steel 1.5ton/Day Ice Flake Machine Flake Ice Maker with Stainless Steel Ice Bin

Certification
China Shenzhen Icesnow Refrigeration Equipment Co., Ltd certification
China Shenzhen Icesnow Refrigeration Equipment Co., Ltd certification
I'm Online Chat Now

High Quality Material SS304 Stainless Steel 1.5ton/Day Ice Flake Machine Flake Ice Maker with Stainless Steel Ice Bin

High Quality Material SS304 Stainless Steel 1.5ton/Day Ice Flake Machine Flake Ice Maker with Stainless Steel Ice Bin
High Quality Material SS304 Stainless Steel 1.5ton/Day Ice Flake Machine Flake Ice Maker with Stainless Steel Ice Bin

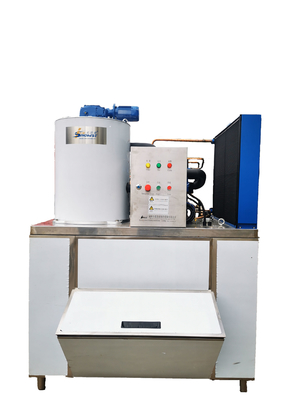

Large Image :  High Quality Material SS304 Stainless Steel 1.5ton/Day Ice Flake Machine Flake Ice Maker with Stainless Steel Ice Bin

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: GM-15KA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: 20 working days

High Quality Material SS304 Stainless Steel 1.5ton/Day Ice Flake Machine Flake Ice Maker with Stainless Steel Ice Bin

Description
Ice Shape: Flake Ice Voltage: 380v/50hz/3p
Condition: New Material: Stainless Steel
Temperature Of Flake Ice: -5℃~-8℃ Ice Thickness: 1.5mm-2.2mm
Water-feeding Pressure: 0.1Mpa-0.6Mpa

High Quality Material SS304 Stainless Steel 1.5ton/Day Ice Flake Machine Flake Ice Maker with Stainless Steel Ice Bin



Main Features:

1. Flake Ice: Dry, pure, powder-less, not easy to block, its thickness is about 1.8mm~2.2mm, without edges or corners which will can product the cooling food, fish, seafood and other products.

2. Machine power supply: 3P/380V/50HZ,3P/380V/60HZ,3P/440V/60HZ

3. All are Stainless Steel Material, Stainless Steel Base, Stainless steel control box, stainless steel ice bin

4. Evaporator Drum: Use Stainless Steel material or Carbon Steel chrome-plating. The scratch-style of inside machine ensures constant running at the lowest power consumption.



Decription:

1 .Icesnow Series Flake Ice Machine produces flake ice , which can be widely used in many industries. We have two types: fresh water type and seawater type. The daily capacity ranges from 300kg to 100tons in 24 hours(Or we can custom made as per your requests).
2.Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.
3. High quality , dry and no-caked. The thickness of flake ice which produced by automatic ice flake making machine with vertical evaporator is about 1 mm to 2 mm. The ice shape is irregular flake ice and it has good mobility.
4. Ice blade: made of SUS304 material seamless steel tube and formed through only one time process. It's durable.







Specification:



Name Technical Data
Ice production 1500kg/24h
Refrigeration capacity 10.5KW
Evaporating temp. -25℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Total Power 7.5kw
Compressor Power 12HP
Reducer motor Power 0.18KW
Water pump Power 0.014KW
Brine water Pump 0.012KW
Standard Power 3P-380V-50Hz
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant R404A
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 382kg
Dimension of flake ice machine 1600mm×940mm×1000mm









Product Advantage:

1. Fully automatic control: For possible failure of the flake ice machine, such as voltage phase loss, overload, water shortage, full ice, low voltage and high voltage, it will automatically stop and alarm to ensure the stable operation.

2. Microcomputer Intelligent Control: the machine is using PLC Control System with world famous brand components. Meanwhile it can protect the machine when there are water shortage, ice full, high/low pressure alarm, and motor reversal.

3. Pass the international CE, SGS, ISO9001 and other certification standards, the quality is reliable.

4. Higher refrigeration efficiency and lower loss of refrigeration capacity.

5. 18 months warranty. Life time technical support.









International Brand famous components:



Item Name of Components Brand Name Original Country
1 Compressor Danfoss Denmark
2 Ice Maker Evaporator ICESNOW



China

3 Air cooled condenser ICESNOW
4 Refrigeration components DANFOSS/CASTAL Demark/Italy
5 PLC Program control LG (LS) South Korea
6 Electrical components LG (LS) South Korea
