Freshwater Flake Ice Machine
>
Easy Control 2.5ton/Day Flake Ice Machine Flake Ice Maker With Ice Bin For Fish

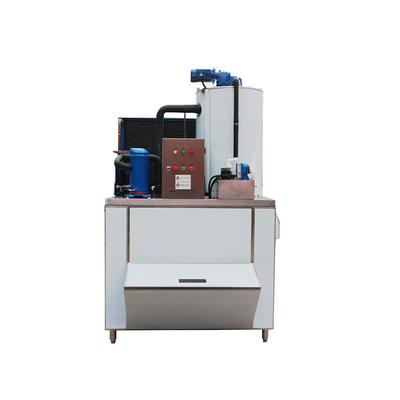

Easy Control 2.5ton/Day Flake Ice Machine Flake Ice Maker With Ice Bin For Fish

Brand Name: ICESNOW
Model Number: GM-25KA
MOQ: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Detail Information
Place of Origin:
China
Certification:
CE CERTIFICATE
Ice Shape:
Flake Ice
Voltage:
380v/50hz/3p
Condition:
New
Material:
Stainless Steel
Temperature Of Flake Ice:
-5℃~-8℃
Ice Thickness:
1.5mm-2.2mm
Water-feeding Pressure:
0.1Mpa-0.6Mpa
Product Description

Easy Control 2.5ton/Day Flake Ice Machine Flake Ice Maker With Ice Bin For Fish



Main Features:

1.The ice Skates is a screw scraper, features low resistance, low consumption, no noise.

2. Machine power supply: 3P/380V/50HZ,3P/380V/60HZ,3P/440V/60HZ

3.The ice storage bin is made of stainless steel and filled with insulation material to ensure that the ice does not melt for 24 hours.

4. All are Stainless Steel Material, Stainless Steel Base, Stainless steel control box, stainless steel ice bin

5.Refrigerant gas: R22/R404A/R507



Decription:

1 .Icesnow flake ice machine designed based on the features and special requirements of supermarket freshing, lab and health care industry, applicated to the field which demands high grade of ice flake
2. Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.
3. Be designed and produced with standard low-temperature pressure vessel manufacturing process, including surface treatment, heat treatment, gas-tight test, tensile & compression strength test, etc.







Specification:



Name Technical Data
Ice production 2.5ton/24h
Refrigeration capacity 17.5KW
Evaporating temp. -25℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Total Power 9.5kw
Compressor Power 15HP
Reducer Power 0.18KW
Water pump Power 0.014KW
Brine Pump 0.012KW
Standard Power 3P-380V-50Hz
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant R404A
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 540kg
Dimension of flake ice machine 1600mm×1180mm×1205mm







Product Advantage:

1. Safe operation and good reliability:All accessories and parts of Icesnow system are adopted of top-level products of western or local markets, greatly enhance the products quality.



2. Easy operation:
flake ice machine is automatically controlled by micro-computer, and has protection for phase lack, reverse, H/low pressure and bin full which makes the operation more reliable and steady, reduced the possibility of damage, easy for maintenance.



3. Pass the international CE, SGS, ISO9001 and other certification standards, the quality is reliable.



4. Energy-efficient and cost saving



5.Compact design, simple refrigeration system, optional overall or distributed arrangement;





Flake ice machine Application:

1) Fishing--Sea water flake ice machine can make ice directly from the sea water, ice can be used in fast cooling of fish and other sea products. Fishing industry is the largest application field of flake ice machine.



2) Sea food process--Flake ice can lower the temperature of cleaning water and sea products, therefore it resists the growth of bacteria and keeps the sea food fresh.



3) Bakery--During the mixing of flour and milk, can prevent the flour from self raising by adding flake ice.



4) Poultry--Huge amount of heat will be generated in food processing, flake ice can effectively cool the meat and water air, also supply moisture for the products at the meantime.



5) Vegetables distribution and fresh-keeping--Now days, in order to guarantee the safety of food, such as vegetables, fruit and meat, more and more physical methods of storing and transporting are being adopted. Flake ice has a fast cooling effect so as to ensure the applied object will not be damaged by bacteria.



6) Medicine--In most cases of biosynthesis and chemosynthesis, flake ice is used to control the reaction rate and maintain the liveness. Flake ice is sanitary, clean with rapid temperature reduction effect. It is the most ideal temperature-reducing carrier.



7) Concrete Cooling--Flake ice is used as the direct source of water in concrete cooling process, more than 80% in weight. It is a perfect media of temperature controlling, can achieve effective and controllable mixing effect. Concrete will not crack if is been mixed and poured in constant and low temperature. Flake ice is widely used in the large projects such as high standard express way, bridge, hydro-plant and nuclear power plant.







FAQ

1. who are we?
We are based in Shenzhne, China, start from 2003,sell to Southeast Asia(30.00%),Africa(21.00%),North America(17.00%),Mid East(8.00%),South America(7.00%),South Asia(5.00%),Domestic Market(5.00%),Eastern Europe(00.00%),Oceania(00.00%),Eastern Asia(00.00%),Western Europe(00.00%),Central America(00.00%),Northern Europe(00.00%),Southern Europe(00.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. what can you buy from us?
Flake Ice Machines,flake ice evaporator,Tube Ice Machines,Block Ice Machines,,Cube Ice Machines,


4.
What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance. You're welcome to see the test of the machines for days.
