Water Cooled Automatic 20 Ton Stainless steel Flake Ice Machine
Main Features
● PLC controlling system, very easy to use.
● Machine power supply: 3P/380V/50HZ,3P/220V/60HZ,3P/380V/60HZ,
● We have a team of experienced professional engineers to install and have successfully installed dozens of large-scale projects abroad.
● Strictly manufactured flake ice evaporator and ice cutter to ensure the long lifespan
● Refrigerant gas: R22/R404A/R507
● all material are stainless steel
1 .Icesnow flake ice machine designed based on the features and special requirements of supermarket freshing, lab and health care industry, applicated to the field which demands high grade of ice flake
2. Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.
3. Microcomputer Intelligent Control: the machine using world famous brand components. Meanwhile, it can protect the machine when there are a water shortage, ice full, high/ low-pressure alarm, and motor reversal.
4. Ice blade--Spiral ice blade, small resistance, low loss, no noise and making ice in uniform.

NameTechnical Data
Ice production20ton/24h
Refrigeration capacity150kw
Evaporating temp.-25℃
Condensing Temp.40℃
Ambient Temp.35℃
Inlet water Temp.20℃
Total Power65KW
Compressor Power120HP
Reducer Power0.75KW
Water pump Power0.37KW
Brine Pump0.012KW
Standard Power3P-380V-50Hz
Inlet water pressure0.1Mpa-0.5Mpa
Flake ice Temp.-5℃
Feeding water tube size1/2"
Net weight3210kg
Dimension (ice machine)4440mm×2174mm×2279mm

Product Advantage:
1. Scientific design and many years of engineering experience
Icesnow will offer you the best scheme of tailor-made ice-making system We have not only supplied lots of ice flake systems to customers from various places but also offered technological consultancy to them.

2. High efficiency and energy saving
We have optimized the design of ice flake units to ensure the ice flake units can function constantly without wasting energy. We have also adopted a special kind of alloy material and patent processing technology to ensure efficient heat conductivity.

3. Simple maintenance and convenient moving
All our equipment is designed on the basis of modules, so its spot maintenance is quite simple. Once some of its parts needs replacing, it is easy for you to remove the old parts and install the new ones. Moreover while designing our equipment, we always take into full account how to convenience future moves to other construction sites.

Product Image:

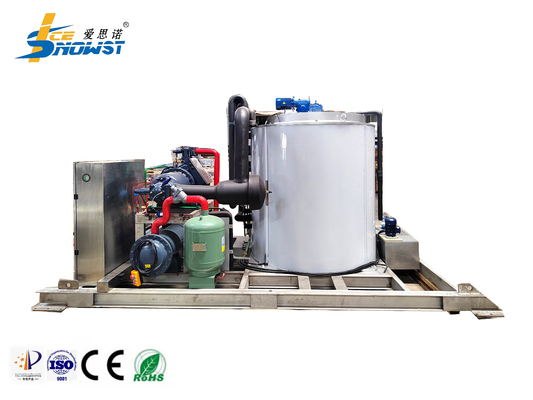

Automatic Stainless Steel Flake Ice Machine 20 Ton Water Cooled 0

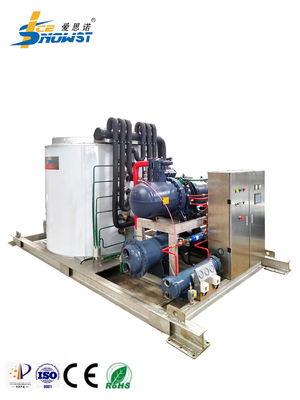

Automatic Stainless Steel Flake Ice Machine 20 Ton Water Cooled 1
