| Brand Name: | ICESNOW |
| Model Number: | GM-300KA |
| MOQ: | 1 SET |
| Price: | 1 USD |
| Packaging Details: | WOODEN PACKING |
Main Features
● PLC controlling system, very easy to use.
● Machine power supply: 3P/380V/50HZ,3P/220V/60HZ,3P/380V/60HZ,
● Low temperature: ice temperature -8 degree
● Strictly manufactured flake ice evaporator and ice cutter to ensure the long lifespan
● Flake Ice shape with excellent cooling performance
Decription:
1 .Ice skates: Spiral hob with small resistance and low consumption, ice making evenly without noise
2. Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.
3. Microcomputer Intelligent Control: the machine using world famous brand components. Meanwhile, it can protect the machine when there are a water shortage, ice full, high/ low-pressure alarm, and motor reversal.
4. Flake ice Evaporator drum: use stainless steel 304 or carbon steel chrome-plating for the flake ice evaporator drum. The scratch-style system of inside machine ensures constant running at the lowest power consumption, exquisite welding, and processing technology ensures high-efficient heat transfer and energy saving.
Specification:
| Name | Technical Data |
| Ice production | 30ton/24h |
| Refrigeration capacity | 195KW |
| Evaporating temp. | -20℃ |
| Condensing Temp. | 40℃ |
| Ambient Temp. | 35℃ |
| Inlet water Temp. | 20℃ |
| Total Power | 119.75KW |
| Compressor Power | 140HP |
| Reducer motor Power | 0.75KW |
| Water pump Power | 0.37KW |
| Brine water Pump | 0.012KW |
| Standard Power | 3P-380V-50Hz |
| Inlet water pressure | 0.1Mpa－0.5Mpa |
| Refrigerant | R404A |
| Flake ice Temp. | -5℃ |
| Feeding water tube size | 1/2" |
| Net weight | 4500kg |
| Dimension of flake ice machine | 4800mm×2320mm×2449mm |
Product Advantage:
1. Scientific design and many years of engineering experience
Icesnow will offer you the best scheme of tailor-made ice-making system We have not only supplied lots of ice flake systems to customers from various places but also offered technological consultancy to them.
2. Large contact area:
As its flat and thin shape, it has got the largest contact area among all types of ice. The larger its contact Area is, the faster it cools other stuff. In comparison with 1 ton of cube ice, 1 ton of flake ice has 1799 sqm Of contact area while 1 ton of cube ice only has 1383 sqm, therefore the flake ice has got much better cooling effects than cube ice.
3. Simple maintenance and convenient moving
All our equipment is designed on the basis of modules, so its spot maintenance is quite simple. Once some of its parts needs replacing, it is easy for you to remove the old parts and install the new ones. Moreover while designing our equipment, we always take into full account how to convenience future moves to other construction sites.
4.Higher refrigeration efficiency and lower loss of refrigeration capacity.
Application:
1. Fishing:
Sea water flake ice machine can make ice directly from the sea water, ice can be used in fast cooling of fish and other sea products. Fishing industry is the largest application field of flake ice machine.
2. Sea food process:
Flake ice can lower the temperature of cleaning water and sea products, therefore it resists the growth of bacteria and keeps the sea food fresh.
3. Bakery:
During the mixing of flour and milk, can prevent the flour from self raising by adding flake ice.
4. Poultry:
Huge amount of heat will be generated in food processing, flake ice can effectively cool the meat and water air, also supply moisture for the products at the meantime.
5. Vegetables distribution and fresh-keeping:
Now days, in order to guarantee the safety of food, such as vegetables, fruit and meat, more and more physical methods of storing and transporting are being adopted. Flake ice has a fast cooling effect so as to ensure the applied object will not be damaged by bacteria.
6. Medicine:
In most cases of biosynthesis and chemosynthesis, flake ice is used to control the reaction rate and maintain the liveness. Flake ice is sanitary, clean with rapid temperature reduction effect. It is the most ideal temperature-reducing carrier.
7. Concrete cooling:
Flake ice is used as the direct source of water in concrete cooling process, more than 80% in weight. It is a perfect mediator temperature controlling, can achieve effective and controllable mixing effect. Concrete will not crack if has been mixed and poured inconstant and low temperature. Flake ice is widely used in the large projects such as high standard express way, bridge, hydro-plant and nuclear power plant.
Why choose ICESNOW Flake Ice Machine(Equipment):
1. Excellent quality, best price.
2. Safe & reliable performance.
3. CE approval.
4. ECO-friendly
5. Long using life.
6. PLC Control System

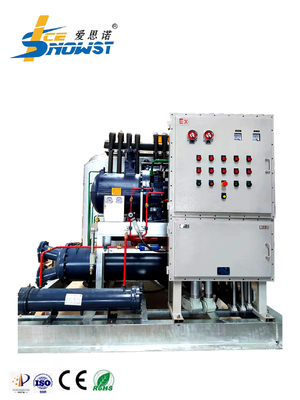

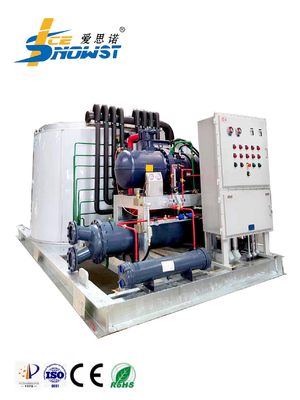

Product Image:
FAQ:
1. Where is your company?
Shenzhen city, Guangdong province, China.
2. What are your advantages?
We ensures our products can reach the strict quality standards and the goods can be delivered on time.
We provide warmly and friendly service and after-sale service.
We will reply you within 24 hours.
We guarantee the best price and multiple choices.
3. When can I get the price?
Usually within 24 hours after we get your inquiry. And if you are very urgent, you can call us or tell us by e-mail so we will prioritize your inquiry.
|
|
